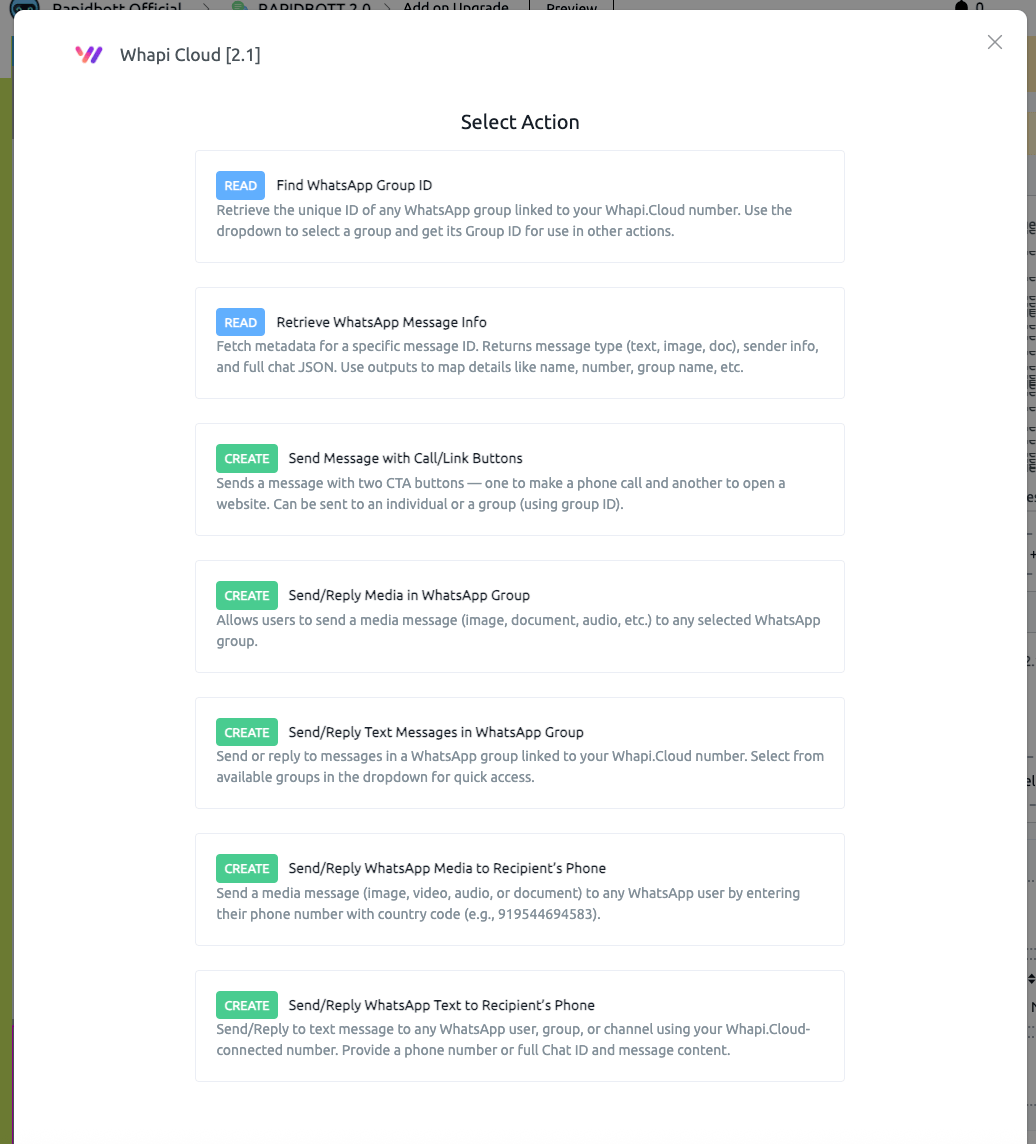

# Whapi.Cloud WhatsApp Integration Easily send and receive WhatsApp messages, media, and group interactions using the Whapi.Cloud Mini App integrated with Rapidbott. This guide explains setup, API token configuration, and the details of each supported action. *** ### 🚀 Overview The Whapi.Cloud Mini App enables: * Retrieve WhatsApp Group IDs * Fetch WhatsApp message info & metadata * Send messages with Call/Link buttons * Send/Reply media in groups * Send/Reply text in groups * Send/Reply media to a user’s phone * Send/Reply text to a user’s phone All actions are securely processed via Whapi.Cloud and can be automated in Rapidbott flows.
*** ### 🔧 Installation Instructions {% embed url="" %} 1. Login to your Rapidbott workspace. 2. Navigate to **Mini Apps** in the sidebar. 3. Click **Install Mini App**. 4. Select **Whapi.Cloud Integration**. 5. Enter your **Whapi.Cloud API Token** when prompted. 6. Save and you’re ready to use the actions. *** ### 🔑 Requirements * Active **Whapi.Cloud account** * WhatsApp phone number linked to Whapi.Cloud * Generated **API Token** *** ### 🔐 API Token Configuration 1. Go to your **Whapi.Cloud Dashboard**. 2. Generate an **API Token** for your WhatsApp number. 3. Copy the token and paste it into the Rapidbott Mini App setup. *** ### 📌 Available Actions & Fields ### 1. Action: Find WhatsApp Group ID

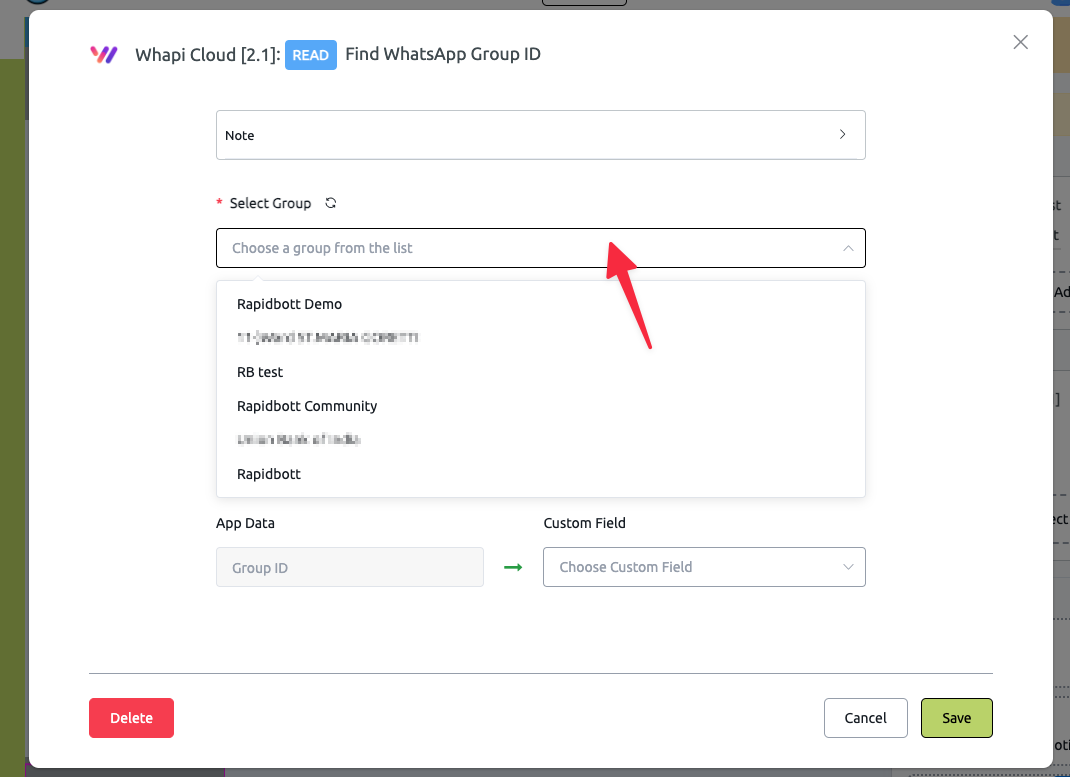

**Purpose**\ Retrieve the **unique ID** of any WhatsApp group linked to your Whapi.Cloud number. This ID is needed to send messages, media, or replies to a group. *** **How it works (screenshot reference):** 1. Select a group from the **dropdown list** of all groups linked to your Whapi cloud WhatsApp number. 2. The system fetches the **Group ID** automatically. 3. Optionally, map the Group ID to a custom field for re-use in later actions. *** #### 🔹 Inputs | Field | Description | Required | Example | | ---------------- | ----------------------------------------------------------- | ---------- | --------------------- | | **Select Group** | Dropdown showing all groups linked to your WhatsApp number. | ✅ Required | “Rapidbott Community” | *** #### 🔹 Outputs | Field | Description | Example | | ---------------- | ---------------------------------------------------- | ------------------------------------- | | **Group ID** | Unique ID of the WhatsApp group (ends with `@g.us`). | `120363402710598239@g.us` | | **Group Name** | Human-readable name of the group. | “Rapidbott Community” | | **Participants** | List of members in the group (if available). | `[919544694583, 919812345678]` | | **Last Message** | Metadata of the most recent message. | `{ id, type, from, timestamp, text }` | *** **Notes** * Always **save Group ID** in a custom field or variable to use it later. * If the group doesn’t appear, confirm your WhatsApp number is a member of that group. * Group IDs always end with `@g.us`. *** ## 2. Action: Retrieve WhatsApp Message Info

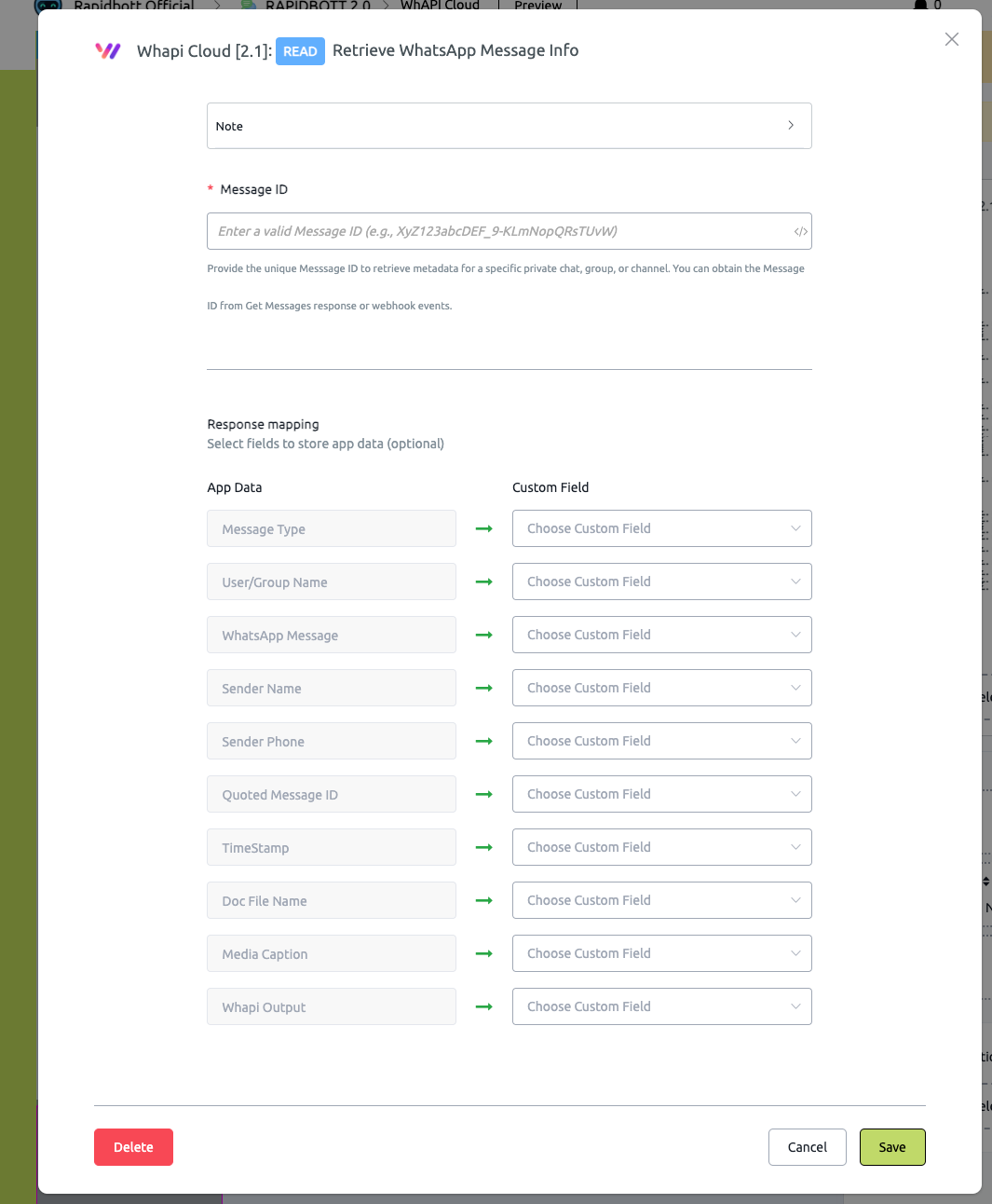

**Purpose**\ Fetch metadata for a specific WhatsApp **Message ID**. Useful to know what type of message was sent (text, image, doc, etc.), who sent it, and to extract captions. *** **How it works (screenshot reference):** 1. Enter the **Message ID** (from webhook or Get Messages response). 2. Map desired outputs (e.g., Sender Phone, Media Caption) to **Custom Fields**. 3. Use the mapped data in later steps to reply or trigger automations. *** #### 🔹 Inputs | Field | Description | Required | Example | | -------------- | ------------------------------------------ | ---------- | ------------------------------ | | **Message ID** | Unique identifier of the WhatsApp message. | ✅ Required | `XyZ123abcDEF_9-KLmNopQRsTUWV` | *** #### 🔹 Outputs | Field | Description | Example | | --------------------- | ----------------------------------------------------- | ------------------------- | | **Message Type** | Type of message: text, image, video, doc, audio, etc. | `image` | | **User/Group Name** | Display name of sender or group name. | “Rapidbott Demo” | | **WhatsApp Message** | The actual message text (if type = text). | “Hello team!” | | **Sender Name** | WhatsApp profile name of sender. | “Vajan Saju” | | **Sender Phone** | Sender’s number (with country code, no “+”). | `919544694583` | | **Quoted Message ID** | ID of the message being replied to. | `ABC123xyz` | | **Timestamp** | When the message was sent (Unix). | `1724148000` | | **Doc File Name** | File name if message type = document. | `invoice.pdf` | | **Media Caption** | Caption if message contains media. | “Please check this file.” | | **Whapi Output** | Full raw JSON payload from Whapi.Cloud. | `{...}` | *** **Notes** * Always map **Sender Phone** if you plan to reply directly. * Use **Media Caption** consistently for all media messages. * Convert **Timestamp** to readable date/time using a processor if needed. * Great for conditional flows: e.g., “If Message Type = Image, then…”. *** ✅ Now you have **all three actions (Find Group ID, Retrieve Message Info, Send Call/Link Buttons)** in the same polished format. *** ### 3. Action: Send Message with Call/Link Buttons

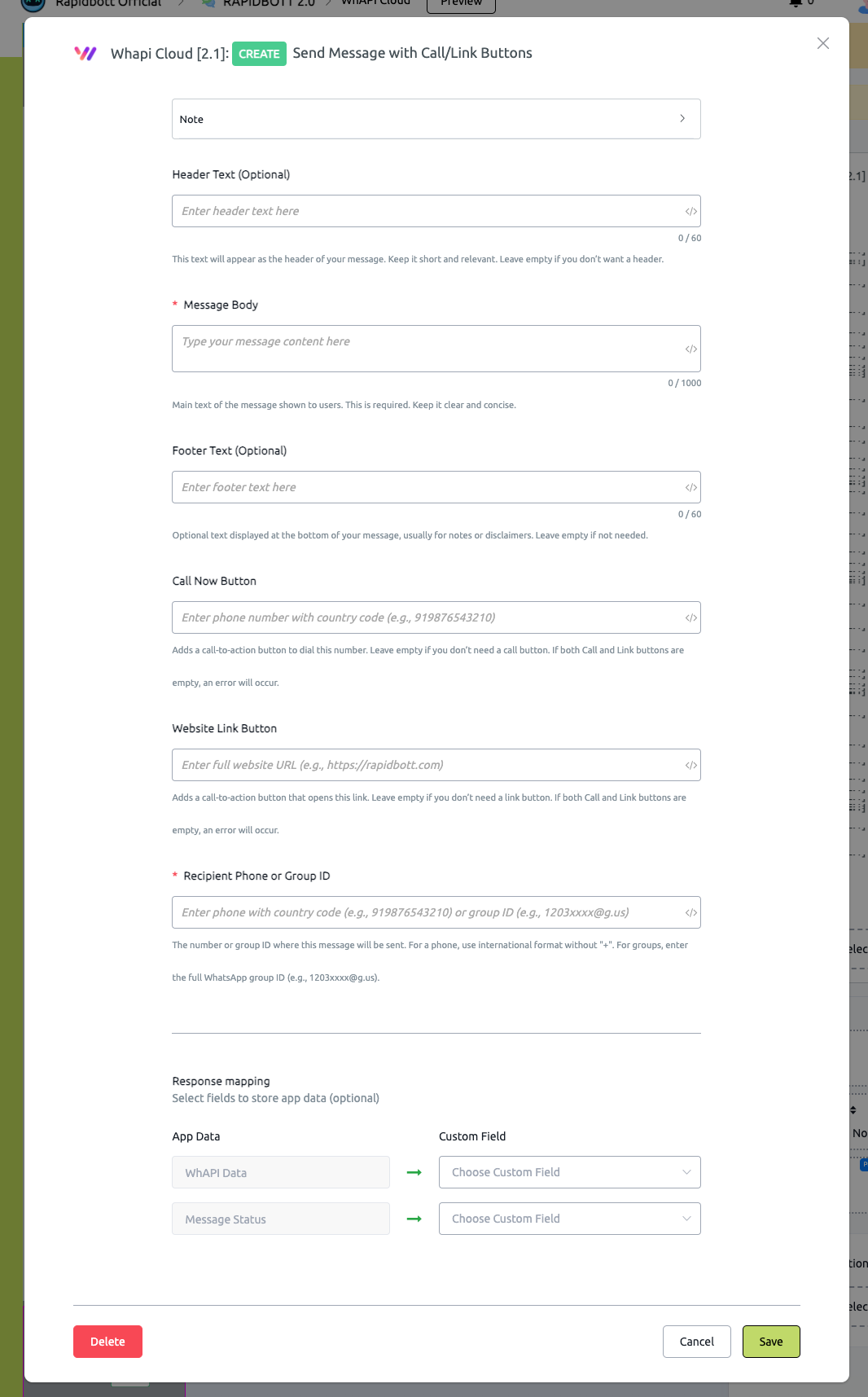

**Purpose**\ Send a WhatsApp message with up to **two CTA buttons**: * **Call Now** → opens the phone dialer. * **Website Link** → opens a website in the browser. This makes messages more interactive and actionable. *** **How it works (screenshot reference):** 1. Add optional **Header Text** (short title). 2. Write your **Message Body** (required). 3. Add optional **Footer Text** (notes, disclaimers). 4. Configure one or both CTA buttons: * **Call Now Button** → enter phone number with country code. * **Website Link Button** → enter full URL. 5. Enter the **Recipient Phone or Group ID** to send the message. 6. Optionally map **WhAPI Data** and **Message Status** into custom fields for later use. *** #### 🔹 Inputs | Field | Description | Required | Example | | ------------------------------- | ------------------------------------------------------------------------- | ---------- | ------------------------------------------- | | **Header Text** | Appears above the message body. Keep short (≤ 60 chars). | Optional | “Support Team” | | **Message Body** | Main text content (≤ 1000 chars). | ✅ Required | “Need help? Reach us instantly.” | | **Footer Text** | Appears below the message body (≤ 60 chars). | Optional | “Available Mon–Fri, 9AM–6PM” | | **Call Now Button** | Phone number with country code (no “+”). Creates a dial button. | Optional | `919876543210` | | **Website Link Button** | Full URL. Creates a link button. | Optional | `https://rapidbott.com` | | **Recipient Phone or Group ID** | Target chat. Phone = digits with country code. Group = ends with `@g.us`. | ✅ Required | `919544694583` or `120363402710598239@g.us` | *** #### 🔹 Outputs | Field | Description | Example | | ------------------ | ---------------------------------------------- | ------- | | **WhAPI Data** | Raw JSON response from Whapi.Cloud. | `{...}` | | **Message Status** | Status of the message (sent/delivered/failed). | `sent` | *** **Notes** * If both **Call Now** and **Website Link** are empty, the action will fail. * Use **short button titles** so WhatsApp UI displays them cleanly. * Test with your own WhatsApp number before sending to live users. * For groups, always use the full Group ID (from *Find WhatsApp Group ID*). *** ✅ Example Setup: * Header → *Support Team* * Message Body → *Need help? You can reach us right away.* * Call Button → `919544694583` * Link Button → `https://rapidbott.com` * Recipient → `919876543210` **Result in WhatsApp:**\ User receives a message with two interactive buttons: *Call Us* and *Visit Website*. *** ### 4. Action: Send/Reply Media in WhatsApp Group

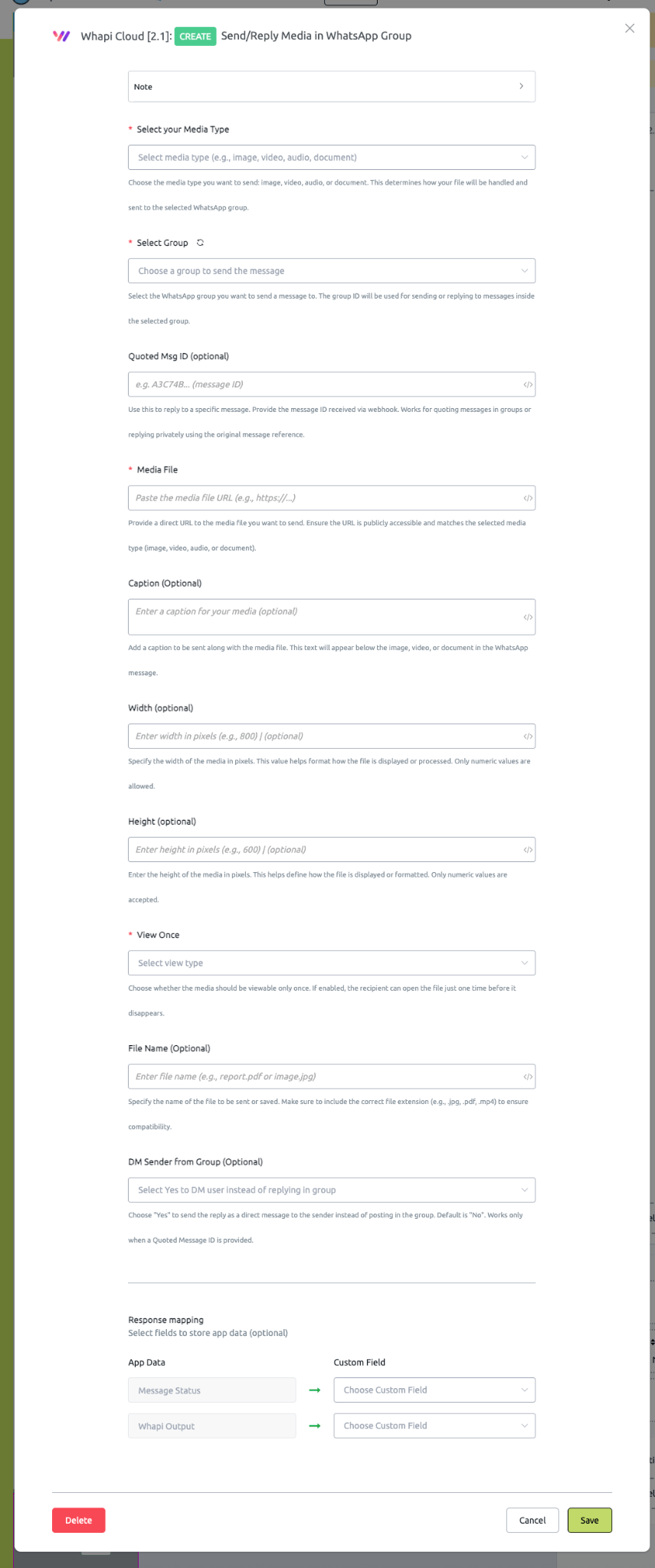

**Purpose**\ Send or reply with a **media file** (image, video, audio, or document) in a WhatsApp group. You can also add a caption, set dimensions, or make media viewable only once. *** **How it works (screenshot reference):** 1. Choose your **Media Type** (image, video, audio, document). 2. Select the **Group** from the dropdown (or provide Group ID). 3. (Optional) Add a **Quoted Msg ID** if you want to reply to a specific message. 4. Paste the **Media File URL** (must be public). 5. (Optional) Add a **Caption**, dimensions (Width/Height), or file name. 6. Select **View Once** if you want the file to disappear after being viewed once. 7. (Optional) Use **DM Sender from Group** → “Yes” will DM the user privately instead of replying in the group (only works with Quoted Msg ID). 8. Save, and map outputs (Message Status, WhAPI Output) to fields if needed. *** #### 🔹 Inputs | Field | Description | Required | Example | | ------------------------ | --------------------------------------------------------------------------------------------------------- | ---------- | ---------------------------------- | | **Select Media Type** | Type of media to send (image, video, audio, doc). | ✅ Required | `image` | | **Select Group** | WhatsApp group where the media will be sent. | ✅ Required | “Rapidbott Community” | | **Quoted Msg ID** | Message ID to reply to (for threading). | Optional | `A3C74B...` | | **Media File** | Public URL to the media file. | ✅ Required | `https://cdn.example.com/file.jpg` | | **Caption** | Text shown below the media. | Optional | “Here’s the product photo.” | | **Width** | Pixel width (for images/videos). | Optional | `800` | | **Height** | Pixel height (for images/videos). | Optional | `600` | | **View Once** | Choose if media should only be viewable once. | ✅ Required | `Yes` or `No` | | **File Name** | File name (only for docs). | Optional | `invoice.pdf` | | **DM Sender from Group** | Choose “Yes” to DM the sender privately instead of replying in the group (only works with Quoted Msg ID). | Optional | `Yes` | *** #### 🔹 Outputs | Field | Description | Example | | ------------------ | ------------------------------------------------------ | ------- | | **Message Status** | Status of the media message (sent, delivered, failed). | `sent` | | **WhAPI Output** | Full raw response from Whapi.Cloud. | `{...}` | *** **Notes** * **Media File URL** must be public (e.g., hosted on CDN, S3, or Whapi file upload). * Use **Caption** instead of creating separate caption fields for different media types. * **View Once** is best for sensitive images/videos (e.g., OTP screenshots). * If **DM Sender from Group = Yes**, the reply goes privately to the sender (instead of inside the group). * Always map **Message Status** to track delivery success/failure. *** ✅ Example Setup: * Media Type → `image` * Group → *Rapidbott Demo* * Media File → `https://cdn.mysite.com/product1.jpg` * Caption → “New stock available!” * View Once → `No` **Result in WhatsApp:**\ The selected group receives the image with the caption below it. *** ### 5. Action: Send/Reply Text Messages in WhatsApp Group
**Purpose**\ Send or reply with a **text message** inside a WhatsApp group. Supports plain text, emojis, and URLs. You can also simulate typing delays, reply to a specific message (threaded), or choose to DM the sender privately instead of posting in the group. *** **How it works (screenshot reference):** 1. Choose the **Group** from the dropdown list. 2. (Optional) Add a **Typing Delay/Time** (in seconds) to make the interaction feel more natural. 3. (Optional) Add a **Quoted Msg ID** if you want to reply directly to a specific message. 4. Enter the **WA Message Body** (your text). 5. (Optional) Select **DM Sender from Group → Yes** to send a private message to the user instead of replying in the group (works only if Quoted Msg ID is provided). 6. Optionally map **Message Status** and **WhAPI Output** to custom fields for tracking. *** #### 🔹 Inputs | Field | Description | Required | Example | | ------------------------ | ------------------------------------------------------------------------------------------------ | ---------- | ------------------------- | | **Select Group** | Group where the message will be sent. | ✅ Required | “Rapidbott Demo” | | **Typing Delay/Time** | Delay before sending (in seconds). Simulates human typing. | Optional | `3` | | **Quoted Msg ID** | Message ID to reply to (threaded reply). | Optional | `A3C74B...` | | **WA Message Body** | The text message content. Supports text, emojis, URLs. | ✅ Required | “Welcome to the group 🚀” | | **DM Sender from Group** | Choose “Yes” to DM the user privately instead of replying in the group (requires Quoted Msg ID). | Optional | `Yes` | *** #### 🔹 Outputs | Field | Description | Example | | ------------------ | ----------------------------------------------------- | ------- | | **Message Status** | Status of the sent message (sent, delivered, failed). | `sent` | | **WhAPI Output** | Full raw response from Whapi.Cloud. | `{...}` | *** **Notes** * Always use **Quoted Msg ID** when you want to reply inline (threaded). * **Typing Delay/Time** helps make bot replies feel human-like (e.g., add a 2–3 second delay). * **DM Sender from Group = Yes** works only when you provide a Quoted Msg ID. Without it, the system won’t know who to DM. * Message body supports **line breaks** and emojis; they will render correctly in WhatsApp. *** ✅ Example Setup: * Group → *Rapidbott Community* * Typing Delay → `2` * Message Body → *“Thanks for sharing! We’ll get back to you shortly 🙂”* * Quoted Msg ID → `XYZ123abc` **Result in WhatsApp:** * Group receives a threaded text reply OR * If **DM Sender = Yes**, the sender gets a private DM with the same message. *** ### 6. Action: Send/Reply WhatsApp Media to Recipient’s Phone

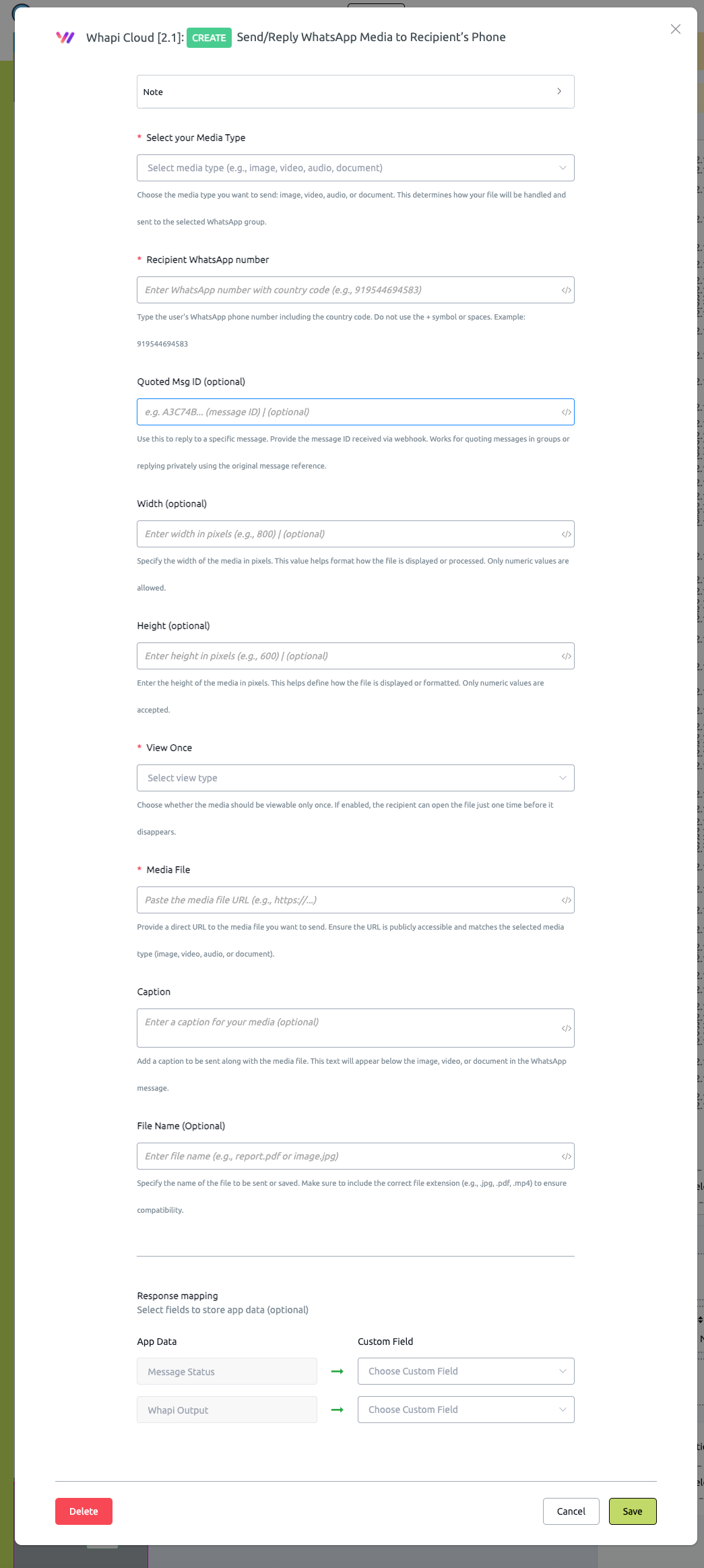

**Purpose**\ Send or reply with **media messages** (image, video, audio, or document) directly to a user’s WhatsApp number. You can include captions, set media dimensions, and even enable **View Once** for sensitive files. *** **How it works (screenshot reference):** 1. Select the **Media Type** (image, video, audio, document). 2. Enter the **Recipient WhatsApp Number** (country code + number, no “+”). 3. (Optional) Add a **Quoted Msg ID** if you want to reply to a specific message. 4. (Optional) Set **Width/Height** for images/videos. 5. Choose **View Once** if the media should disappear after being viewed once. 6. Paste the **Media File URL** (must be public). 7. (Optional) Add a **Caption** or **File Name** (for docs). 8. Map outputs like **Message Status** or **WhAPI Output** if you want to track results. *** #### 🔹 Inputs | Field | Description | Required | Example | | ----------------------------- | --------------------------------------------- | ---------- | ---------------------------------- | | **Select Media Type** | Choose type: image, video, audio, document. | ✅ Required | `image` | | **Recipient WhatsApp Number** | Full phone number with country code (no “+”). | ✅ Required | `919544694583` | | **Quoted Msg ID** | Reply to a specific message. | Optional | `A3C74B...` | | **Width** | Width in pixels (for images/videos). | Optional | `800` | | **Height** | Height in pixels (for images/videos). | Optional | `600` | | **View Once** | Whether media should be viewable only once. | ✅ Required | `Yes` or `No` | | **Media File** | Direct public URL to the media file. | ✅ Required | `https://cdn.example.com/file.jpg` | | **Caption** | Text shown below the media. | Optional | “Here’s the brochure.” | | **File Name** | File name for docs (include extension). | Optional | `report.pdf` | *** #### 🔹 Outputs | Field | Description | Example | | ------------------ | ------------------------------------------------------ | ------- | | **Message Status** | Status of the media message (sent, delivered, failed). | `sent` | | **WhAPI Output** | Full JSON response from Whapi.Cloud. | `{...}` | *** **Notes** * The **Media File URL** must be public and accessible; otherwise the send will fail. * **Recipient Number** must include the country code, but no “+” sign. Example: `919876543210`. * **View Once** is ideal for sensitive content (e.g., tickets, passwords, private files). * Always test with your own number first to confirm formatting. * For **documents**, always specify **File Name** (with extension like `.pdf`, `.docx`). *** ✅ Example Setup: * Media Type → `document` * Recipient → `919876543210` * Media File → `https://cdn.mysite.com/invoice123.pdf` * File Name → `invoice123.pdf` * Caption → “Here’s your invoice.” * View Once → `No` **Result in WhatsApp:**\ The recipient receives a PDF document with the caption “Here’s your invoice.” *** ### 7. Action: Send/Reply WhatsApp Text to Recipient’s Phone
**Purpose**\ Send or reply with a **plain text message** directly to any WhatsApp user’s phone. Supports emojis, line breaks, and URLs. You can also simulate typing delay or reply inline using a Quoted Message ID. *** **How it works (screenshot reference):** 1. (Optional) Add **Typing Delay/Time** (in seconds) to simulate a human typing pause. 2. (Optional) Add a **Quoted Msg ID** if replying to a specific message. 3. Enter the **WA Message Body** (text content). 4. Enter the **Recipient Phone** (country code + number, no “+”). 5. Optionally map **Message Status** and **WhAPI Output** for tracking. *** #### 🔹 Inputs | Field | Description | Required | Example | | --------------------- | -------------------------------------------------------------- | ---------- | --------------------------------- | | **Typing Delay/Time** | Delay before sending (in seconds). Makes replies feel natural. | Optional | `2` | | **Quoted Msg ID** | Message ID to reply to (for context). | Optional | `A3C74B...` | | **WA Message Body** | The text to send (supports plain text, emojis, URLs). | ✅ Required | “Hi 👋 thanks for contacting us!” | | **Recipient Phone** | Full phone number with country code (no “+”). | ✅ Required | `919876543210` | *** #### 🔹 Outputs | Field | Description | Example | | ------------------ | ----------------------------------------------------- | ------- | | **Message Status** | Status of the sent message (sent, delivered, failed). | `sent` | | **WhAPI Output** | Full JSON response from Whapi.Cloud. | `{...}` | *** **Notes** * **Recipient Phone** must include the country code, digits only (no plus sign). * **Quoted Msg ID** is useful when replying contextually in a group/private thread. * Supports **emojis** 👍 and **line breaks** (\n). * Best for **notifications, OTPs, reminders, and private follow-ups**. *** ✅ Example Setup: * Typing Delay → `3` * WA Message Body → *“Hello! Your order #12345 has been shipped 🚚📦”* * Recipient Phone → `919544694583` **Result in WhatsApp:**\ The user receives a text message with a small simulated typing delay, making the bot feel more human-like. *** ### 📋 Field Summary * **recipient\_phone** – Digits only, with country code. * **group\_id** – WhatsApp Group ID (…@g.us). * **chat\_id** – Generic target (phone or group). * **message\_text** – Message body. * **caption\_text** – Caption for media. * **file\_url** – Public URL of file. * **file\_name** – Optional, for documents. * **mime\_type** – e.g., application/pdf, image/jpeg. * **quoted\_msg\_id** – ID of the message being replied to. *** ### ✅ Example Use Cases for Whapi.Cloud Integration #### 1) **Find WhatsApp Group ID** * **Onboarding new members:** When a user signs up, automatically add them to the right WhatsApp group and store the group ID for future broadcasts. * **Support groups:** Identify the group ID for “VIP Customers” and send them priority updates. *** #### 2) **Retrieve WhatsApp Message Info** * **Customer intent detection:** If a customer sends a photo with the caption *“Invoice issue”*, the system detects `media + caption` and routes it to billing support. * **Smart replies:** Differentiate between text vs. image. If text → send auto-answer; if image → forward to human agent. * **Data collection:** Extract `Sender Phone` to save the lead automatically into CRM. *** #### 3) **Send Message with Call/Link Buttons** * **Customer support shortcut:** Send a message with two buttons → “📞 Call Support” and “🌐 Visit Help Center”. * **Sales promotion:** Share a new product announcement with a *Buy Now* website link and a *Call Us* button. * **Event reminders:** “Your webinar starts soon. Click to join 👉 \[Join Link]” *** #### 4) **Send/Reply Media in WhatsApp Group** * **Announcements:** Share images or flyers in a staff or student group. * **E-commerce promotions:** Send product catalogs (PDFs or images) to customer groups. * **Education:** Teachers send study materials (PDFs, videos) to class groups. * **Replies with context:** Quote a student’s question and reply with a reference image or doc. *** #### 5) **Send/Reply Text Messages in WhatsApp Group** * **Community management:** Auto-greet new members with *“Welcome to Rapidbott Community 🚀”*. * **Support automation:** If someone posts *“How to reset password?”* → bot replies with instructions. * **Feedback collection:** Post *“How was today’s session? Reply below 👇”* *** #### 6) **Send/Reply WhatsApp Media to Recipient’s Phone** * **Order confirmation:** Send a PDF invoice or product image directly to the buyer’s WhatsApp. * **Travel booking:** Share flight tickets or hotel booking PDFs. * **Healthcare:** Send prescriptions, lab results, or reports securely with *View Once* enabled. * **E-learning:** Deliver personalized lesson videos/documents to each student. *** #### 7) **Send/Reply WhatsApp Text to Recipient’s Phone** * **Notifications:** “Hi John, your order #12345 has been shipped 🚚📦” * **Reminders:** “Your appointment is tomorrow at 10 AM.” * **Marketing campaigns:** Personalized coupon codes → “Hi Sarah, use code *SAVE20* for 20% off.” * **Follow-ups:** After a group discussion, DM the user with next steps or links. *** ### 🎯 Why this Integration is Useful for Businesses * **One-to-one + group automation** → You can handle both personal chats *and* group conversations in a single integration. * **Rich interactions** → Not just text; you can send media, documents, and CTAs (call & link buttons). * **Personalization at scale** → Reply privately (DM) to users in groups, making customer engagement feel 1:1 even inside busy groups. * **Operational efficiency** → Automatically fetch message info, detect type, and route to correct workflows (support, sales, CRM). * **Security options** → View-once media ensures sensitive files (e.g., invoices, prescriptions) disappear after opening. *** 👉 In short, this integration allows a business to **automate 80% of repetitive WhatsApp tasks** — sending updates, answering FAQs, delivering files — while keeping the option to escalate to a human when needed. *** ### 📝 Notes * Remove “+” from phone numbers. Use digits only. * Store IDs (group\_id, chat\_id) in variables for reuse. * Always log sent\_message\_id for debugging. * Ensure media URLs are public. *** ### ☑️ Final Checklist * [ ] Whapi.Cloud account created * [ ] WhatsApp number linked * [ ] API Token generated * [ ] Mini App installed in Rapidbott * [ ] Actions tested with sample messages {% hint style="warning" %} ### ⚠️ Disclaimer This integration uses a **third-party developer API** provided by . * Rapidbott only provides the integration layer for convenience. * Any **downtime, API changes, WhatsApp account issues, or bans** are outside of Rapidbott’s control. * Please use this integration **at your own risk**. * If you experience **issues related to Whapi.Cloud or with your WhatsApp number after connecting it with Whapi**, please contact **Whapi.Cloud support directly**. * It is **recommended to use a separate WhatsApp number** (with some existing usage history) for this integration. Avoid using your **primary/personal number**. * Always follow WhatsApp’s official usage policies to reduce the risk of disruptions. {% endhint %}
